Case Former

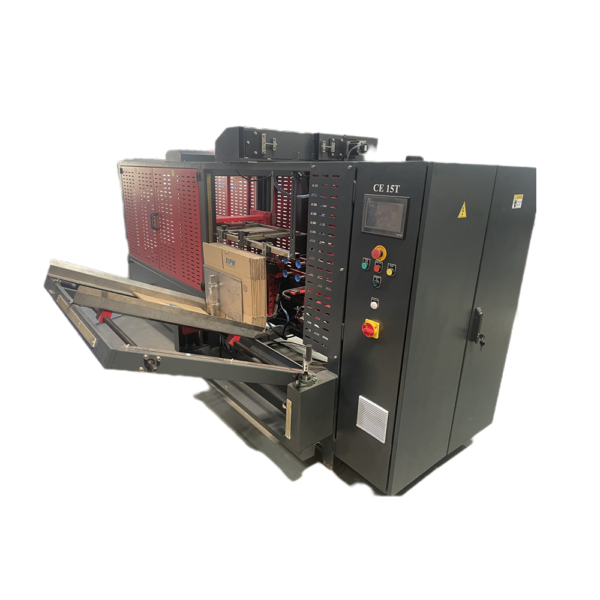

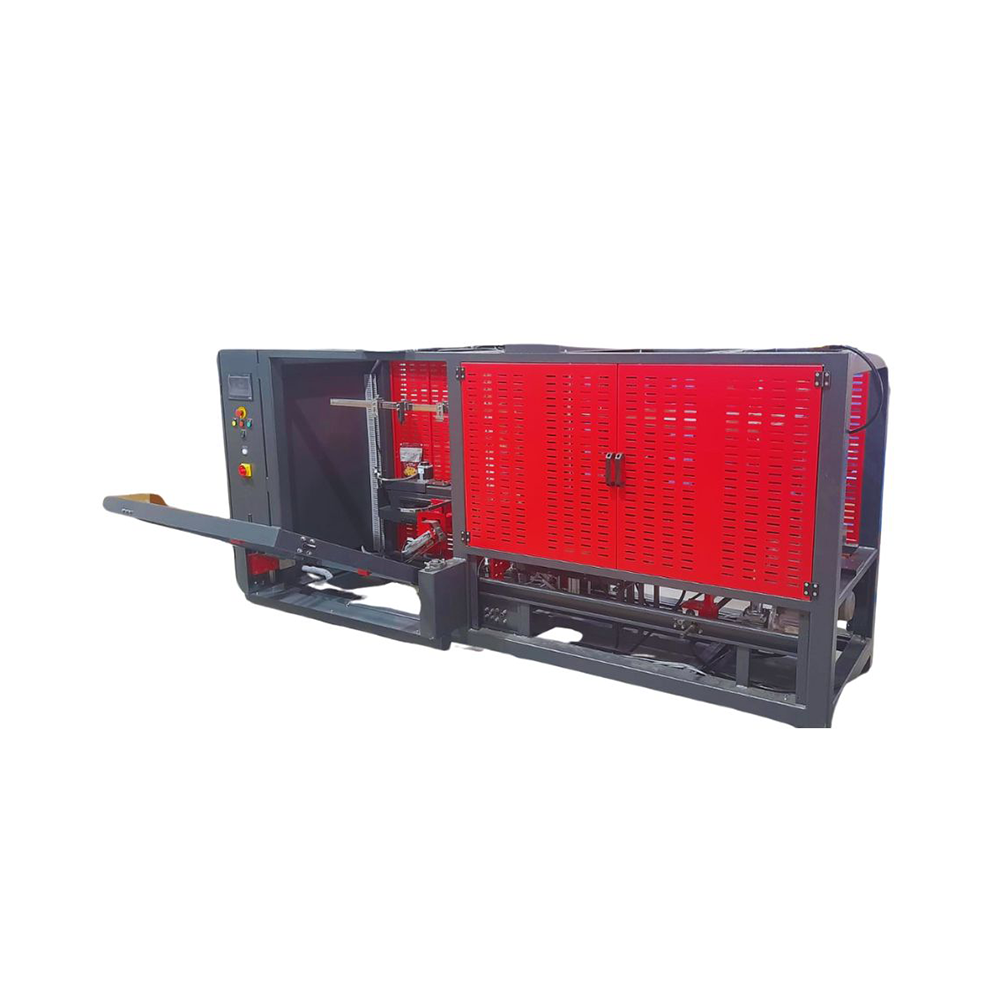

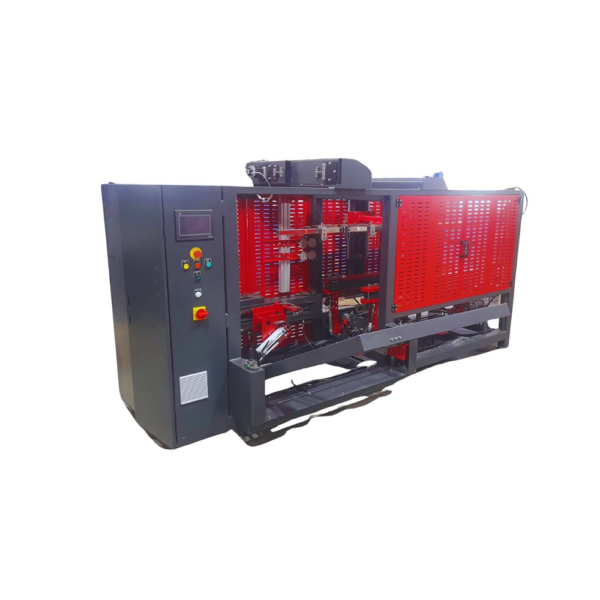

Spheretech’s innovative machine integrates PLC controllers and touchscreen controls for seamless operation and rapid changeovers facilitated by servo drives. It efficiently separates vertical stacks of boxes using vacuum technology, forms them, and then pushes them through belt drives where the bottom flaps are securely sealed.
Guarantee Safe & Secure Checkout
Applications
Specificatons
Specificatons
| Case Length (mm) | 200 – 500 (Outside Dimensions) |
| Case Width (mm) | 180 – 400 (Outside Dimensions) |
| Case Height (mm) | 180 – 500 (Outside Dimensions) |
| Case Type | RSC |
| Flute Types | B, C, E or Combinations |
| Wall Types | Single & Double Wall |
| Taping Head | SIAT 3″ Inches Tape Width |
| Mechanical Speed | 15 cases per minute |
| Magazine Infeed | 100 cases (Approximately) |
| Electrical Connection | 415V, 3 Phase, 50 Hz |
| Power Required | 3 KVA |
| Compressed Air (Dry Air) | 20 CFM @ 6 bar (Customer Scope) |
| Machine Dimension | 3070 mm (L) × 1930 mm (W) × 1560 mm (H) |
Features & Benefits
Features & Benefits
- PLC controlled with error and fault display on HMI.
- Case opening with vacuum system.
- Easy job changeovers with servo-controlled width adjustment.
- Built-in intelligent MIS system providing complete production data.
- All access doors are electrically interlocked for operator safety.
- Built in accordance with international safety standards.
- Mechanical speed up to 15 cases per minute.
